  • How to Select Your PowerFactory License

    Introduction :

    Price of software depends on your selection of configuration.
    You can choose different options based on following variables:.
    1. Number of buses.
    2. Modules and functions
    3. Number of users
    4. Type of software edition.
    PowerFactory licenses are offered in the categories commercial (PF4C) and educational / Research licenses (PF4E / PF4R).
    Special licenses are available for students (PF4S / PF4T).

    Educational and Academic licenses are explained here
    https://www.digsilent.me/dme/node/908



  • #2
    4-Step Selection Process :

    The selection process is straightforward.
    1. The number of buses (or nodes) range : 100/250/500/unlimited.
    2. Main modules are listed below. More details are given in the brochure
    3. Number of users need to be selected for each module if network license is selected.
    4. Types of editions are explained below

    RFQ can be requested from here and configuration can be selected directly.
    https://www.digsilent.de/en/request-...tion-1436.html

    Comment


    • Admin
      Admin commented
      Editing a comment
      Thank you for this topic. 4-step process is very clear and installation options differ in whether local or central database is required.
      You can also request demo license from this link
      https://www.digsilent.de/en/demo-request-31.html

    • Admin
      Admin commented
      Editing a comment
      You can also view videos on installation and how to start projects.

  • #3
    PowerFactory Modules :

    This is a brief list of modules. More features and function can be found in product brochure, given in attachment (version 2021).
    1. PowerFactory Base Package
    2. Contingency Analysis
    3. Quasi-Dynamic Simulation
    4. Network Reduction
    5. Time-Overcurrent Protection (only)
    6. Protection Functions (Time-Overcurrent & Distance)
    7. Arc-Flash Analysis
    8. Cable Analysis
    9. Power Quality and Harmonic Analysis
    10. Connection Request Assessment (D-A-CH-CZ guideline)
    11. Transmission Network Tools (includes Outage Planning)
    12. Distribution Network Tools (includes Outage Planning)
    13. Probabilistic Analysis
    14. Reliability Analysis Functions
    15. Optimal Power Flow I (Reactive Power Optimisation)
    16. Optimal Power Flow II (OPF I + Economic Dispatch)
    17. Unit Commitment and Dispatch Optimisation
    18. Economic Analysis Tools
    19. State Estimation (SE)
    20. Stability Analysis Functions (RMS) (includes Motor Starting Functions)
    21. Electromagnetic Transients (EMT)
    22. Motor Starting Functions
    23. Small Signal Stability (Eigenvalue Analysis)
    Attached Files

    Comment


    • #4
      Software Editions :

      The user can choose from the following installation options, according to the intended working environment and typical IT architecture.

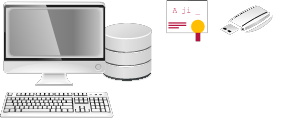

      Single-User Edition
      This edition is recommended for end users who want to install, administrate and use the software themselves on their local machines.
      Database: Local

      Click image for larger version

Name:	Single.png
Views:	2752
Size:	14.1 KB
ID:	1123

      Comment


      • #5

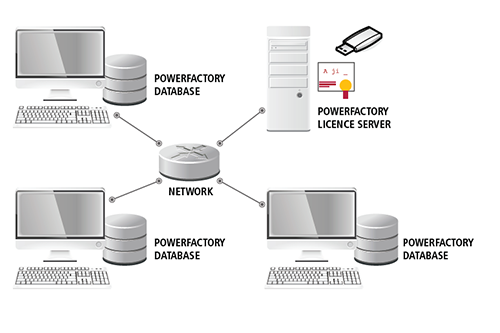

        Multi User Edition :

        This edition is recommended for organisations who need to manage a group of individual licences. A Licence Manager (which comes with the PowerFactory software) provides and manages the licences, which are accessed by the individual users via the local network. The number of concurrent users is limited according to the number of licences that have been purchased.

        Database: Local

        Click image for larger version

Name:	Multi.png
Views:	2794
Size:	73.8 KB
ID:	1128

        Comment


        • #6

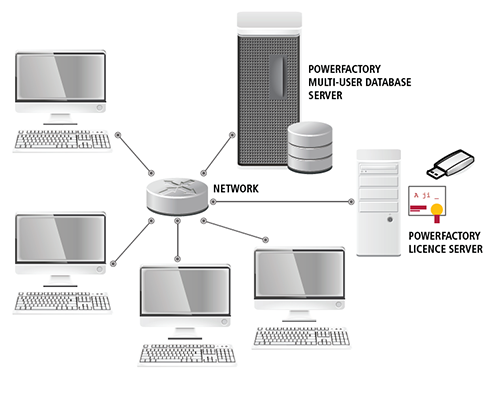

          Team Edition :

          This edition is recommended for multi-user groups requiring access to centralised project data and data sharing among group members. It features a multi-user database (ORACLE, SQL Server), with automatic database housekeeping (e.g. schedulable overnight) and integrated project backup tools. The users benefit from the PowerFactory team-working tools such as Master Project management, Project Versioning, Project Deriving along with Project Compare and Merge tools, which facilitate concurrent model building and data entry. The Team Edition comes with a Licence Manager (same as for the Multi-User Edition) and the PowerFactory Administrator user can configure individual user accounts or user groups in order to manage their access to specific licence modules.

          Database: Multi-user DBMS (Oracle or SQL Server)

          Click image for larger version

Name:	Team.png
Views:	2771
Size:	102.6 KB
ID:	1127

          Comment


          • #7
            Originally posted by Support View Post
            Introduction :

            Price of software depends on your selection of configuration.
            You can choose different options based on following variables:.
            1. Number of buses.
            2. Modules and functions
            3. Number of users
            4. Type of software edition.
            PowerFactory licenses are offered in the categories commercial (PF4C) and educational / Research licenses (PF4E / PF4R).
            Special licenses are available for students (PF4S / PF4T).

            Educational and Academic licenses are explained here
            https://www.digsilent.me/dme/node/908

            Thank you for this topic. 4-step process is very clear and installation options differ in whether local or central database is required.
            You can also request demo license from this link
            https://www.digsilent.de/en/demo-request-31.html
