In this thread I will present to you some data measurement and how we can use PowerFactory to display and analyse the data measured by DIgSILENT PowerFactory Monitor (PFM).

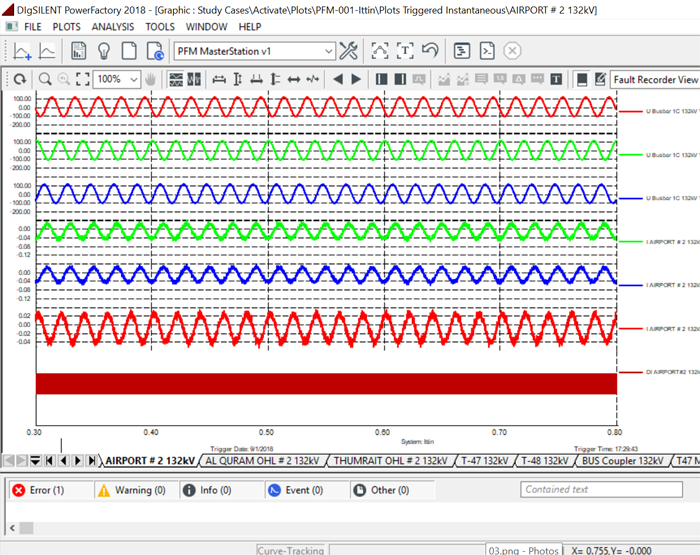

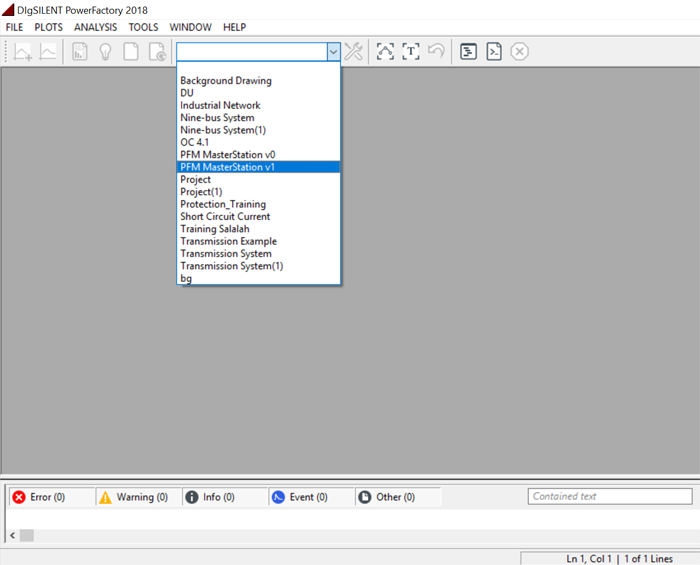

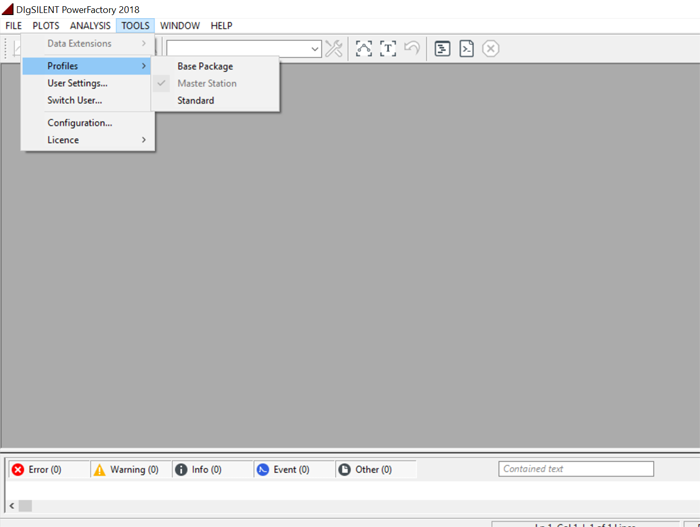

You can select PFM Master Station ans shown below.

Activation of project can be done by selecting data manager or from drop down menu as shown

You can select create new plot or open plot from icons at top left hand corner.

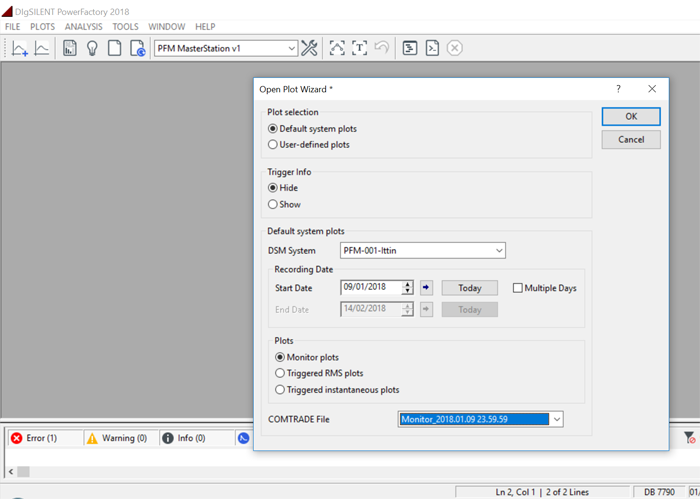

Make sure you adjust the correct date and Camtrade file is selected.

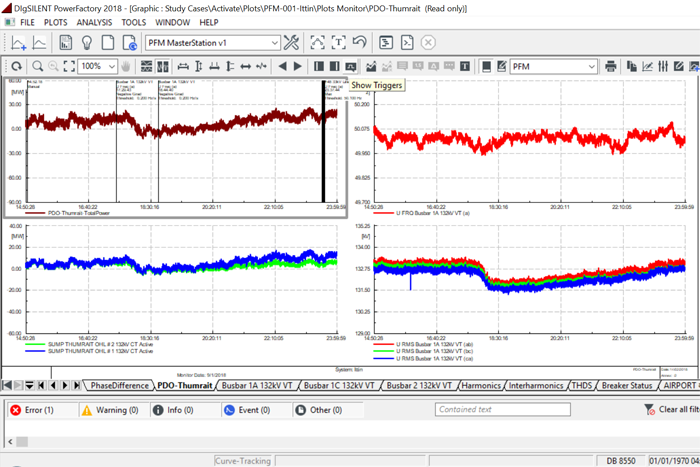

You can then select the display required on the plot. Triggers can be shown by pressing the icon Show Triggers.

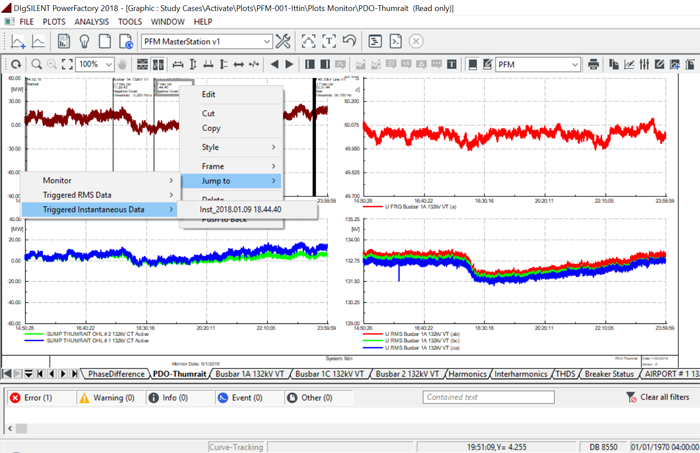

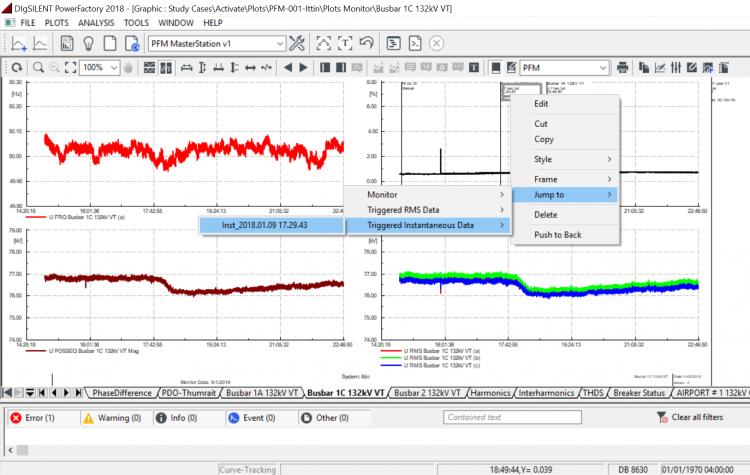

If you highlight a trigger, write click to show instantaneous values.

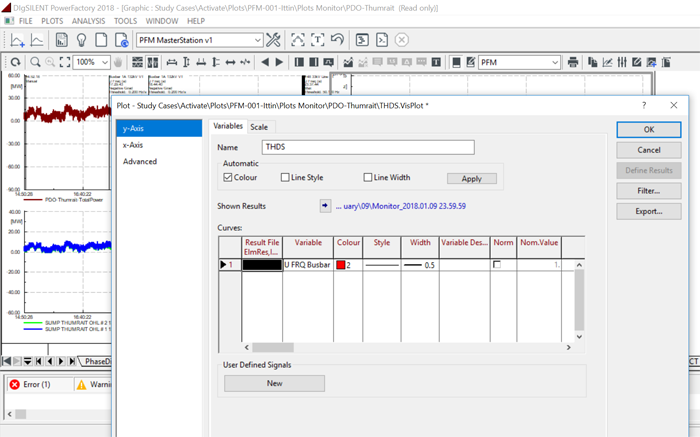

You can display other results by selecting the graph and then Edit.

Click on result file and select from data manager as shown
You can select PFM Master Station ans shown below.
Activation of project can be done by selecting data manager or from drop down menu as shown
You can select create new plot or open plot from icons at top left hand corner.
Make sure you adjust the correct date and Camtrade file is selected.
You can then select the display required on the plot. Triggers can be shown by pressing the icon Show Triggers.
If you highlight a trigger, write click to show instantaneous values.
You can display other results by selecting the graph and then Edit.
Click on result file and select from data manager as shown
